THERMAL SHIELDING & ELECTRONICS MASKING
High-Temperature Tapes & Precision Converting
Custom slitting and die-cutting for high-temperature masking, wave solder gold finger protection, and electrical insulation. We convert premium Polyimide (Kapton/PI/BGA), Green Polyester (PET), Glass Cloth, and PTFE tapes engineered for clean, residue-free removal up to 260°C–300°C.
Up to 300°C
Peak Thermal Endurance
0% Residue
Clean Peel After Baking
Down to 2 mm
Precision Slit Ribbon Width
Die-Cut & Slit
Discs, Preforms & Coils
1. Primary Thermal Masking & Insulation Films
ELECTRONICS BENCHMARK (UP TO 260°C–300°C)

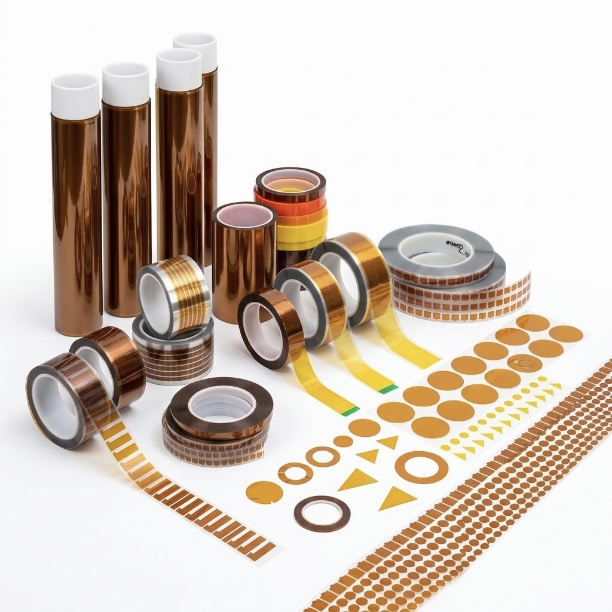

Polyimide (Kapton / PI / BGA) Tape
Amber-colored polyimide film coated with high-grade cross-linked silicone adhesive (also available with antistatic ESD coating). Known across the industry as Kapton tape, PI film tape, or BGA rework tape, this material withstands extreme thermal reflow and wave soldering without shrinkage or adhesive ghosting.
- Thickness Variations: 0.05 mm (1 mil film), 0.06 mm, 0.08 mm (2 mil), 0.12 mm (5 mil)
- Performance: Dielectric strength up to 6.5 kV, flame retardant (UL94 V-0)
- Primary Uses: SMT gold finger masking, BGA rework thermal isolation, lithium battery pack tab wrapping, transformer Class H insulation
POWDER COATING & PLATING (UP TO 200°C–220°C)

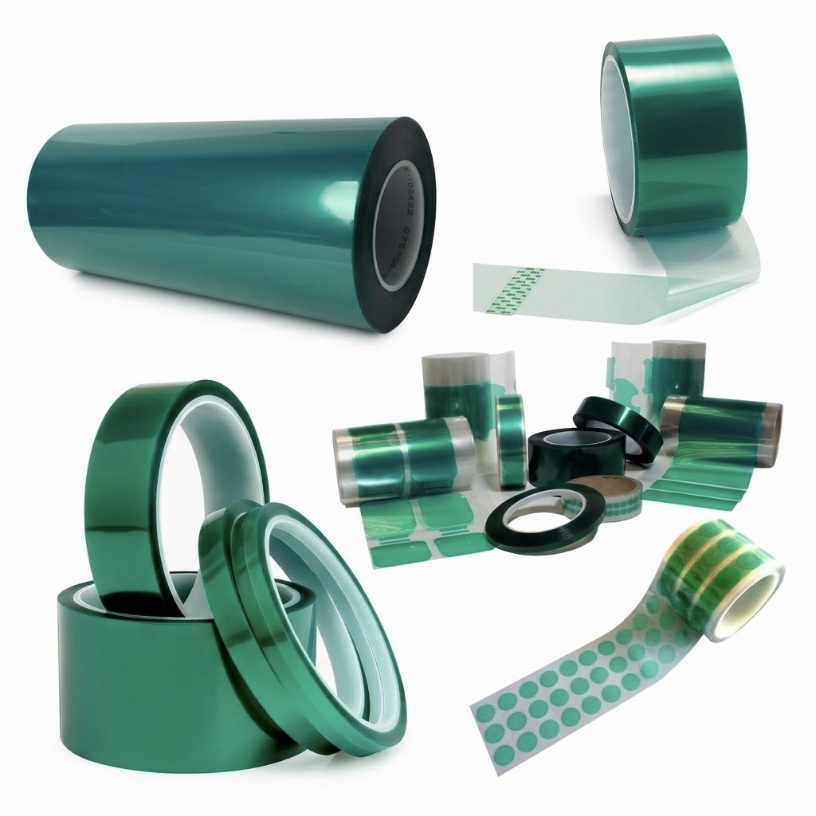

Green High-Temp Polyester (PET) Tape
Conformable green polyester film backed with heat-resistant silicone adhesive. Delivers sharp, micro-precise paint lines with high tear resistance, standing up to aggressive chemical baths and high-bake ovens.
- Thickness Options: 0.05 mm, 0.06 mm, and 0.08 mm heavy-duty calipers
- Key Advantage: Sharp demarcation edge, chemical resistance to anodizing and acid plating baths
- Primary Uses: Electrostatic powder coating, PCB gold finger electroplating, e-coating, metal anodizing
2. Specialty Thermal & Mechanical Tapes

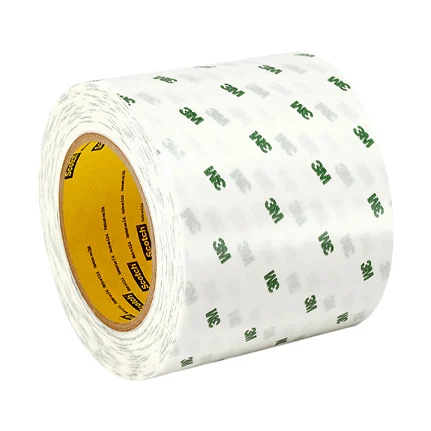

3M™ 966 Acrylic Transfer Tape
High-temp 100MP acrylic adhesive handling short-term peaks up to 232°C. Extremely low outgassing, ideal for aerospace, flexible circuit attachment, and disk drives.
Temp: Up to 232°C | Caliper: 0.05 mm (2.0 mil)

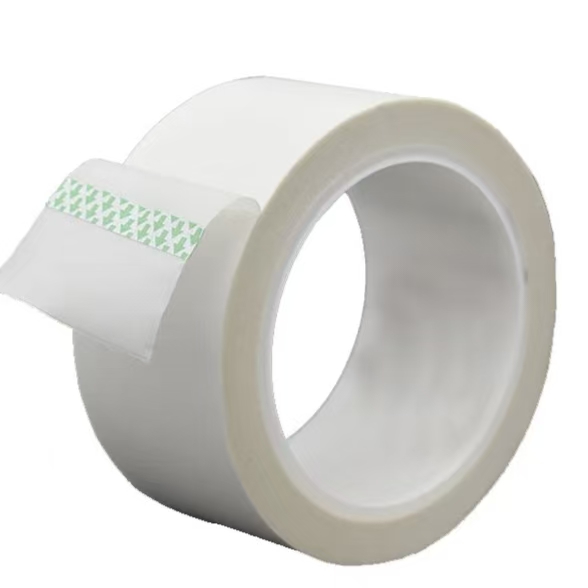

High-Temp Glass Cloth Tape
Woven fiberglass carrier with thermosetting silicone or rubber adhesive. Superb mechanical tear resistance and flame-retardant Class H thermal isolation.
Temp: Up to 200°C–260°C | Caliper: 0.15 mm – 0.20 mm

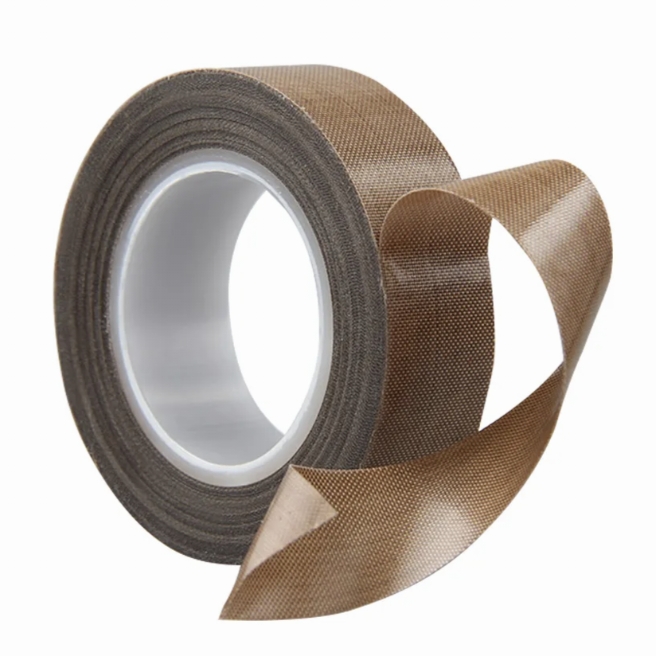

PTFE / Teflon™ Film Tape
Pure skived PTFE film or PTFE-coated fiberglass with silicone adhesive. Offers an ultra-low friction non-stick surface, high chemical inertness, and non-wetting properties.
Temp: Up to 260°C | Caliper: 0.08 mm – 0.18 mm
3. Thickness, Temperature & Dielectric Matrix
Engineers can specify exact film thicknesses to balance flexibility, puncture resistance, and continuous thermal rating.
| Material Designation | Total Thickness | Adhesive Type | Operating Temp | Dielectric / Feature | Standard Uses |
|---|---|---|---|---|---|
| Polyimide (Kapton/PI) – 1 mil | 0.05 mm (2.0 mil) | Silicone | -40°C to 260°C (300°C peak) | 5,000 V / UL94 V-0 | Standard wave solder masking, PCB gold finger protection |
| Polyimide (BGA Rework) – 2 mil | 0.08 mm (3.1 mil) | Silicone | -40°C to 280°C | 6,500 V / High puncture resistance | BGA chip reballing, heavy thermal reflow cycles, flex circuits |
| Polyimide Heavy-Duty – 5 mil | 0.16 mm (6.3 mil) | Silicone | -40°C to 260°C | 10,000 V breakdown | Heavy electrical insulation, traction motor bars, battery busbars |
| Green High-Temp PET Tape | 0.06 mm (2.4 mil) | Silicone | -40°C to 200°C (220°C peak) | Chemical & acid resistant | Powder coating, e-coating, PCB electroplating, anodizing |
| 3M™ 966 Adhesive Film | 0.05 mm (2.0 mil) | 100MP Acrylic | Up to 232°C (450°F) | Ultra-low outgassing | FPC flex bonding, aerospace sensors, automotive electronics |
| Glass Cloth Tape | 0.18 mm (7.0 mil) | Silicone / Rubber | Up to 200°C–260°C | Heavy tensile strength | Transformer coil binding, plasma spray masking, heat seals |
| PTFE / Teflon™ Tape | 0.13 mm (5.0 mil) | Silicone | -70°C to 260°C | Ultra-low friction coefficient | Heat sealing jaws, roller wrapping, anti-chafing aircraft wires |
4. Custom Converting & Packaging Formats

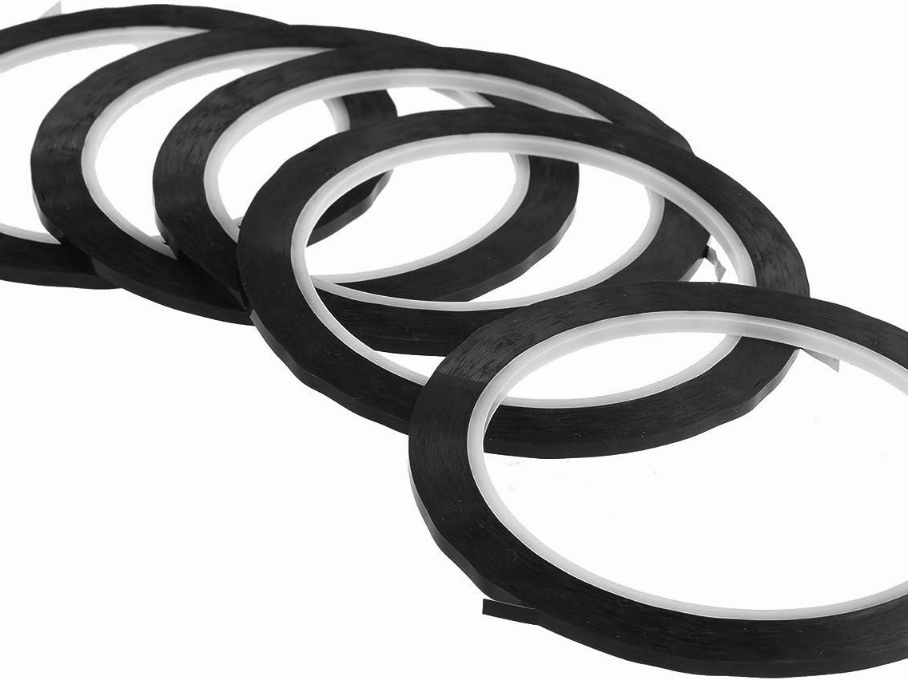

Narrow Slit Coils (Down to 2 mm)
Custom slit width down to 2 mm (±0.1 mm) wound with controlled tension on 1″ or 3″ standard cores. Flat roll sidewalls prevent edge nicks and adhesive bleed.

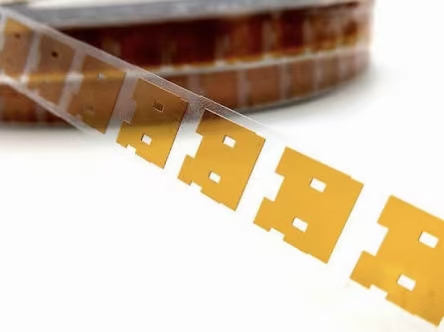

Die-Cut Masking Discs & Dots
Precision-stamped circular dots and squares supplied kiss-cut on easy-release split liners or continuous reels for fast manual peeling during wave solder runs.

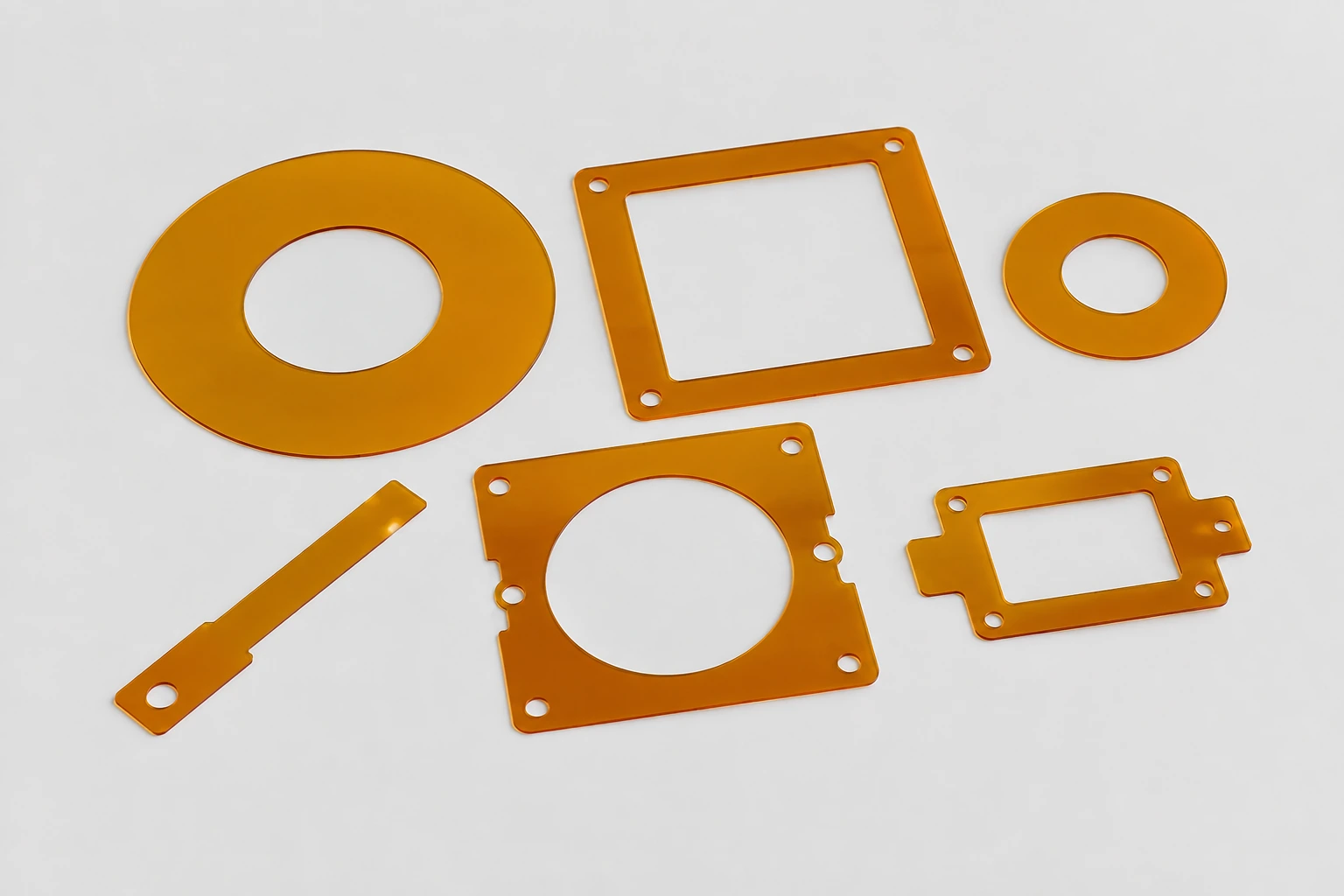

Custom BGA Windows & Preforms
Rotary-cut rectangular frames, grounding tabs, and center-window masking shapes engineered to protect surrounding SMT passives during localized BGA hot-air rework.
Frequently Asked Questions
Are Kapton, PI, and BGA tapes identical?
Yes. “Kapton” is DuPont’s trademark for polyimide (PI) film. In electronics repair, technicians commonly refer to amber polyimide tape as “BGA tape” due to its widespread use in BGA rework.
Does the tape leave silicone residue after high bake?
No. We formulate our high-temperature tapes with fully cured, cross-linked silicone adhesives designed for 100% clean peeling after 260°C wave solder or 200°C powder coating cycles.
When should I choose Green PET over Kapton?
Choose Green PET when maximum bake temperatures stay under 200°C–220°C (e.g., powder coating or electroplating). It offers sharper paint demarcation lines and higher cost efficiency than Polyimide.
What payment methods and currencies do you accept?
We support standard USD T/T (SWIFT wire transfers) for global accounts. In addition, to help international buyers minimize SWIFT intermediary bank charges and transfer delays, we provide local domestic bank collections across most European and North American regions (supporting local transfers in EUR via SEPA, GBP, USD, and other major European currencies).
Need Custom Slit Widths or Die-Cut Masking Shapes?
Send us your target bake temperatures, required slit widths, or CAD drawing (.DXF, .DWG, .PDF). Our engineering team will supply material recommendations, rapid samples, and quotes within 24 hours.
