GENUINE 3M™ CONVERTING & FABRICATION
Precision Die-Cut 3M™ Adhesive Tapes
Full-spectrum converting solutions using genuine 3M™ pressure-sensitive adhesives. We provide micro-slit rolls, standalone kiss-cut preforms with pull tabs, and custom adhesive backing on foams, plastics, and metallic foils for international OEM/ODM assemblies.
Down to 2 mm
Narrow Slit Width Limit
±0.05 mm
Rotary Kiss-Cut Tolerance
100% Genuine
Certified 3M™ Raw Materials
24 – 48 h
Sample Dispatch Speed
1. Supply & Converting Formats
We tailor 3M™ materials to your exact manufacturing flow: from slit narrow rolls for taping dispensers to adhesive preforms and composite substrate laminations.

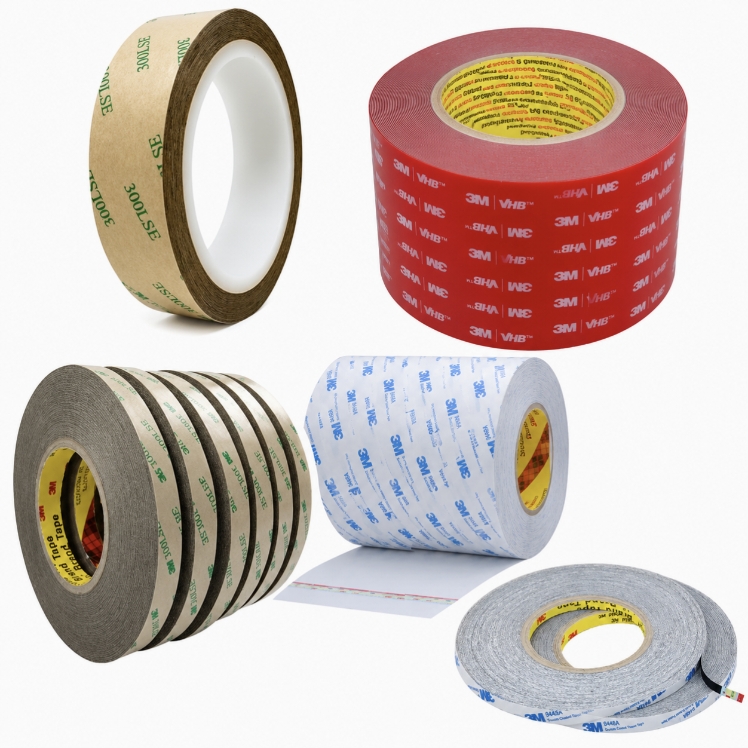

OPTION 01: ROLL CONVERTING
Precision Slit & Rewound Rolls
Master jumbo 3M logs converted into precision micro-slits and custom-width rolls with flat, non-telescoping sidewalls and zero edge adhesive ooze.
- Micro-Slitting: Down to 2 mm widths (±0.1 mm width tolerance)
- Core Sizes: Standard 1″ (25.4 mm) and 3″ (76.2 mm) cores
- Finishing: Custom continuous lengths for automated dispensers

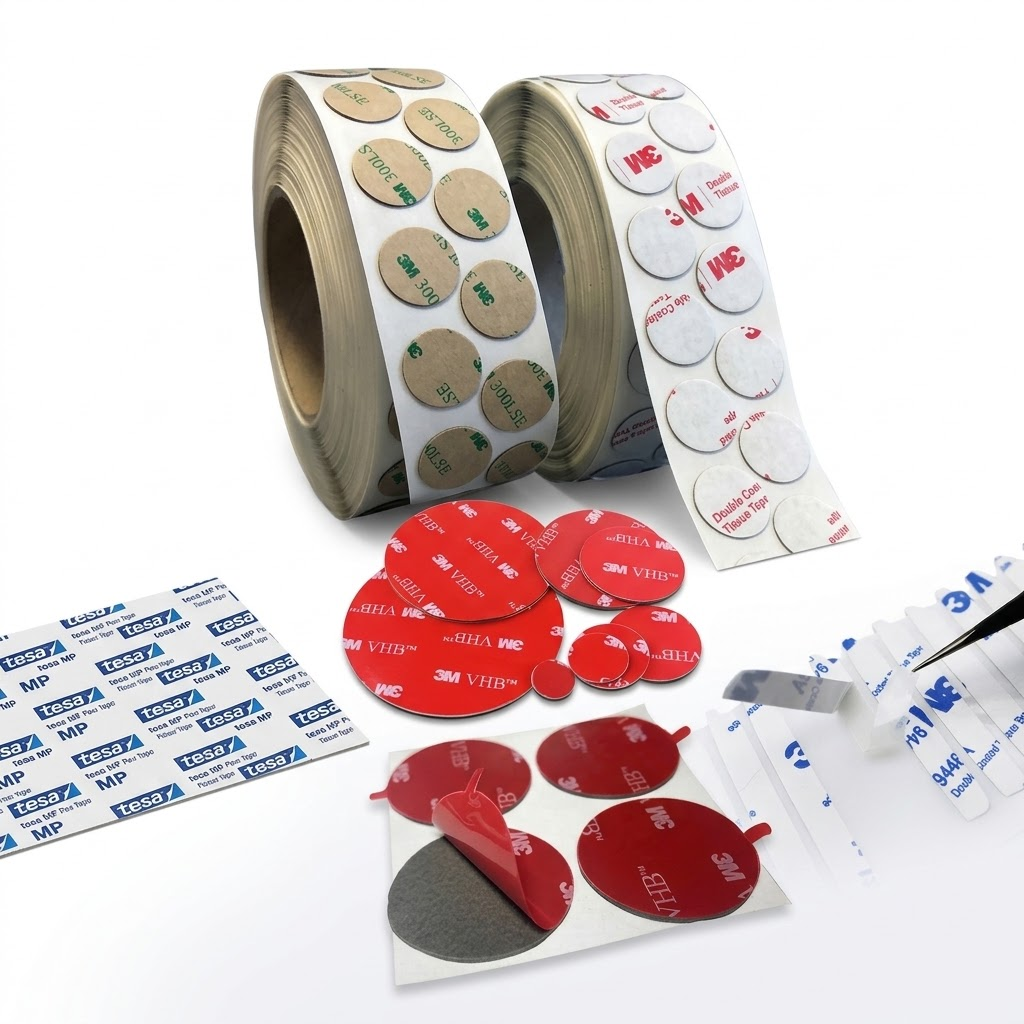

OPTION 02: DIE-CUT PREFORMS
Standalone Die-Cut Adhesive Shapes
Pure 3M transfer films (467MP, 468MP) or VHB cut to custom geometries, display windows, frame borders, and intricate electrical grounding perimeters.
- Assembly Aids: Extended border liners and non-adhesive pull tabs
- Format: Continuous rotary kiss-cut reels or kiss-cut sets on sheets
- Applications: Metal nameplates, touch displays, membrane switches

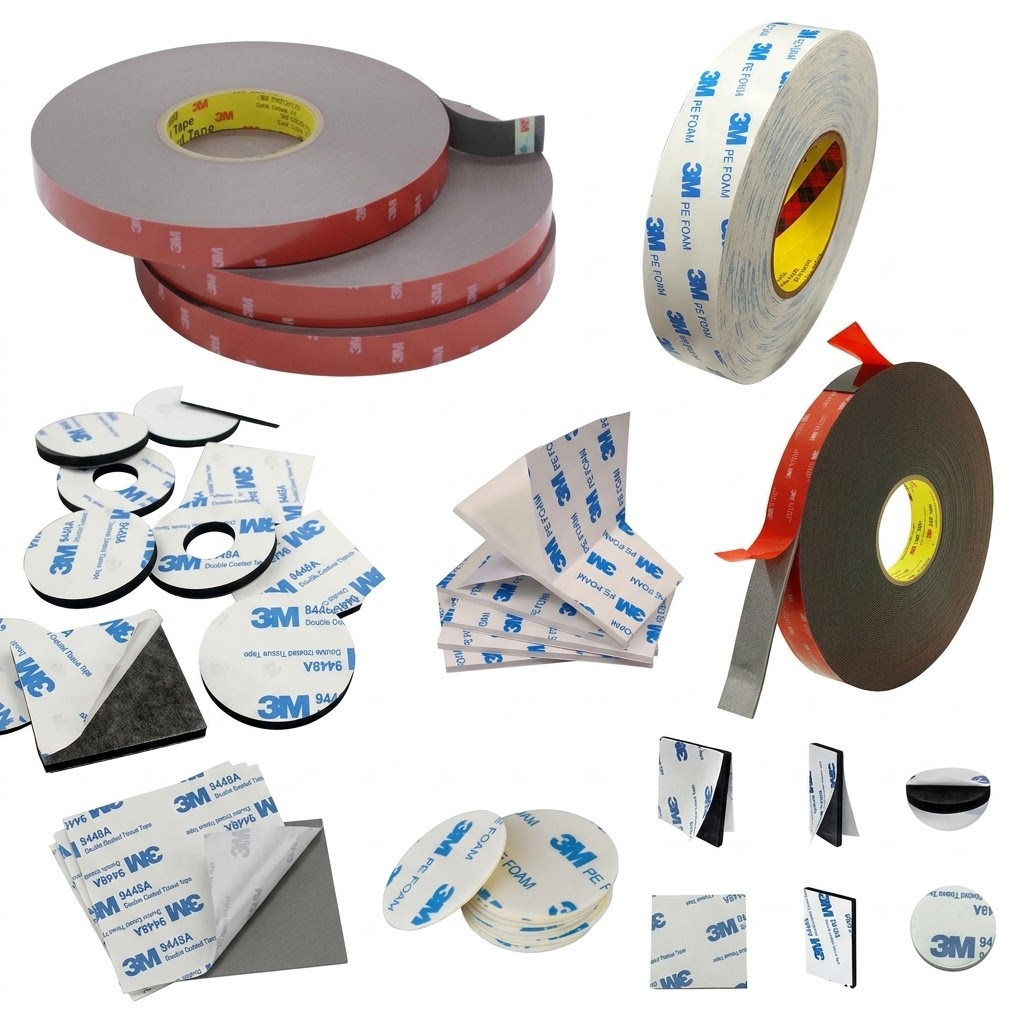

OPTION 03: SUBSTRATE BACKING
Pre-Applied Adhesive Backing
We pre-laminate 3M pressure-sensitive adhesives onto foams, rubber, plastic barriers, or shielding foils, then die-cut them into ready-to-stick composite parts.
- Substrates: Rogers PORON, EVA, silicone sponge, Kapton, Mylar, copper
- Adhesive Systems: Single-sided or double-sided differential adhesives
- Efficiency: Direct peel-and-stick deployment on customer assembly lines
2. Core 3M™ Adhesive Families We Process

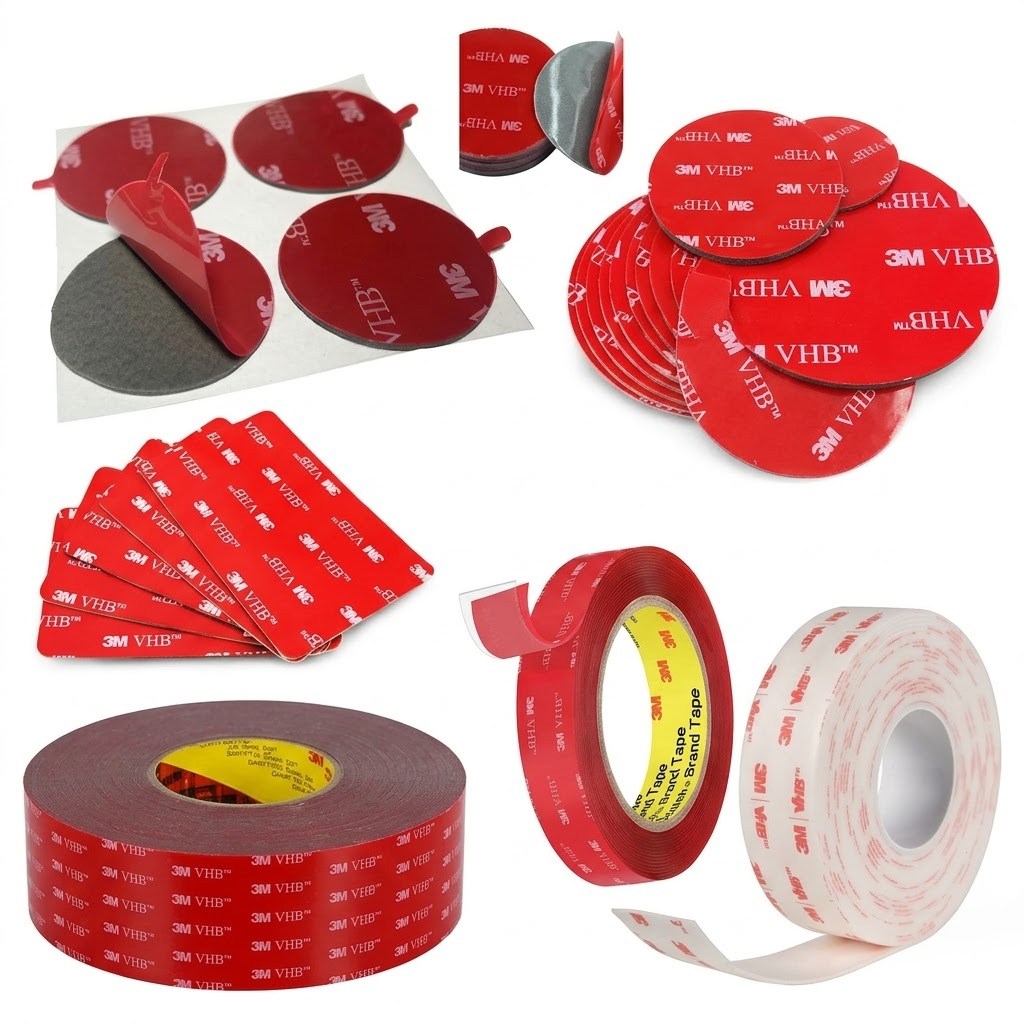

STRUCTURAL BONDING
3M™ VHB™ Acrylic Foam Tapes
High-strength viscoelastic closed-cell acrylic foam replacing mechanical rivets, screws, and liquid glues. Absorbs high dynamic shock and seals against moisture.
- Grades: 5952, 4910, 4941, 4950, RP45
- Thickness: 0.4 mm up to 2.3 mm
- Focus: Automotive brackets, display frames, architectural panels

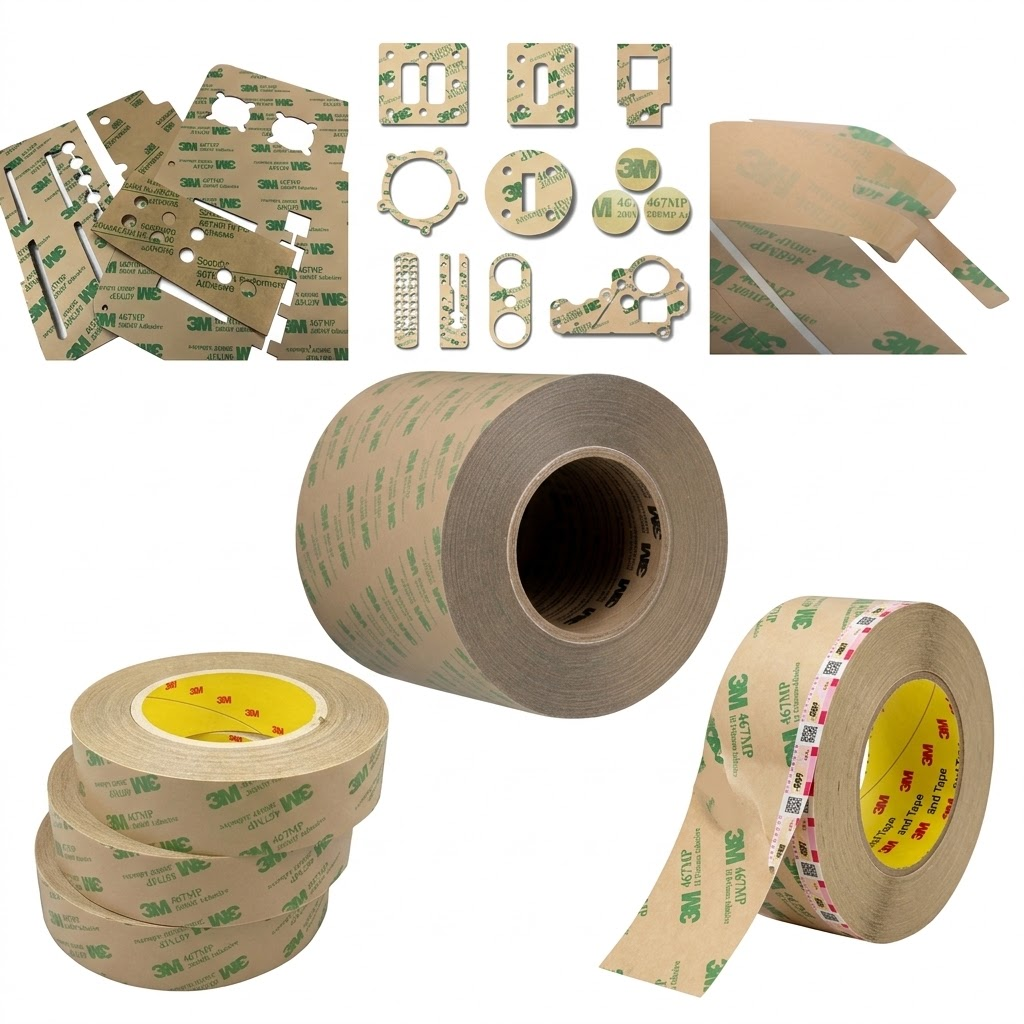

THIN PROFILE & GRAPHICS
3M™ 200MP Adhesive Transfer Tapes
Pure high-performance acrylic adhesive film with exceptional shear strength, temperature tolerance up to 204°C, and smooth burr-free die-cut perimeters.
- Grades: 467MP (0.05 mm / 2 mil), 468MP (0.13 mm / 5 mil)
- Liner: #58 polycoated kraft paper or moisture-stable lay-flat liners
- Focus: Graphic overlays, metal nameplates, membrane switches

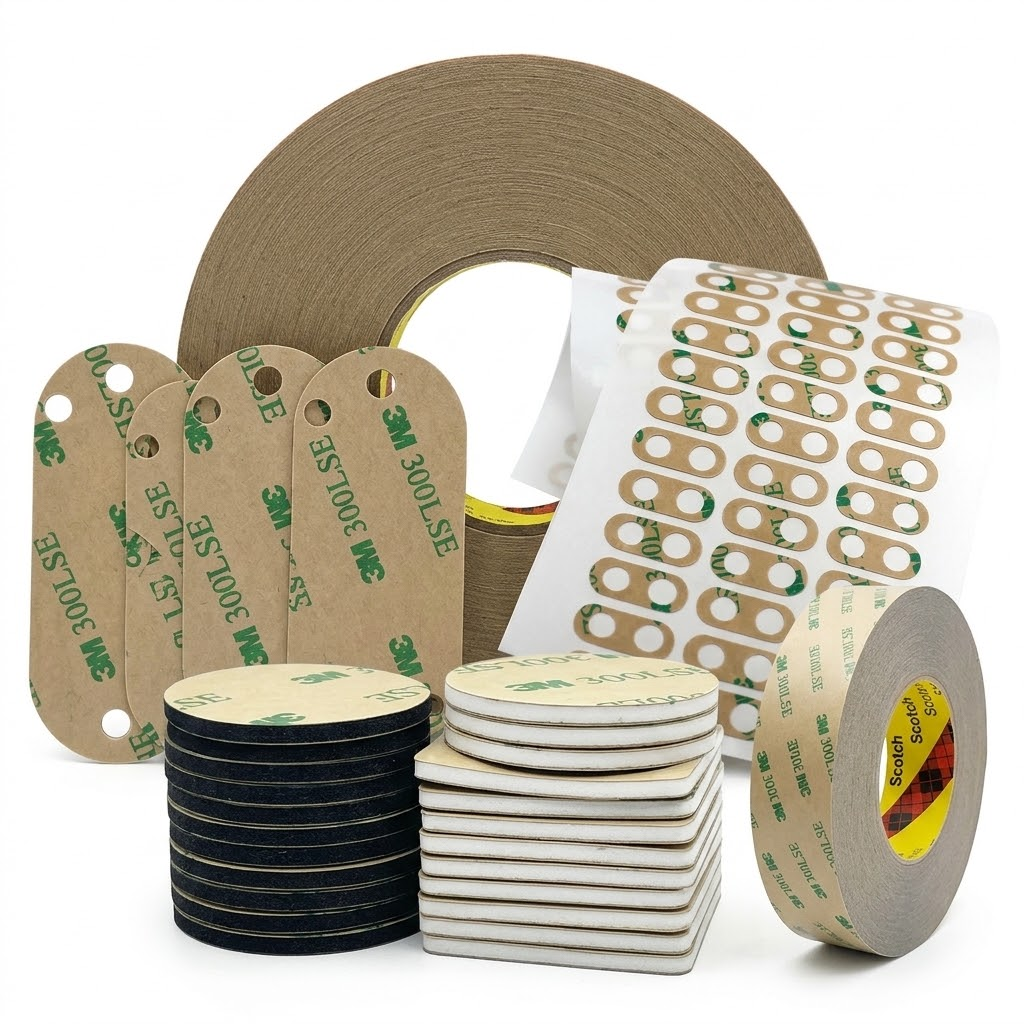

LOW SURFACE ENERGY (LSE)
3M™ 300LSE & Double-Coated Tapes
Formulated specifically for hard-to-bond substrates like polypropylene (PP), polyethylene (PE), and powder coatings, offering immense initial tack without priming.
- Grades: 93015LE, 9495LE (PET carrier), 9472LE
- Advantage: Exceptional anti-lifting performance on oily plastic surfaces
- Focus: Consumer electronics housings, automotive interiors

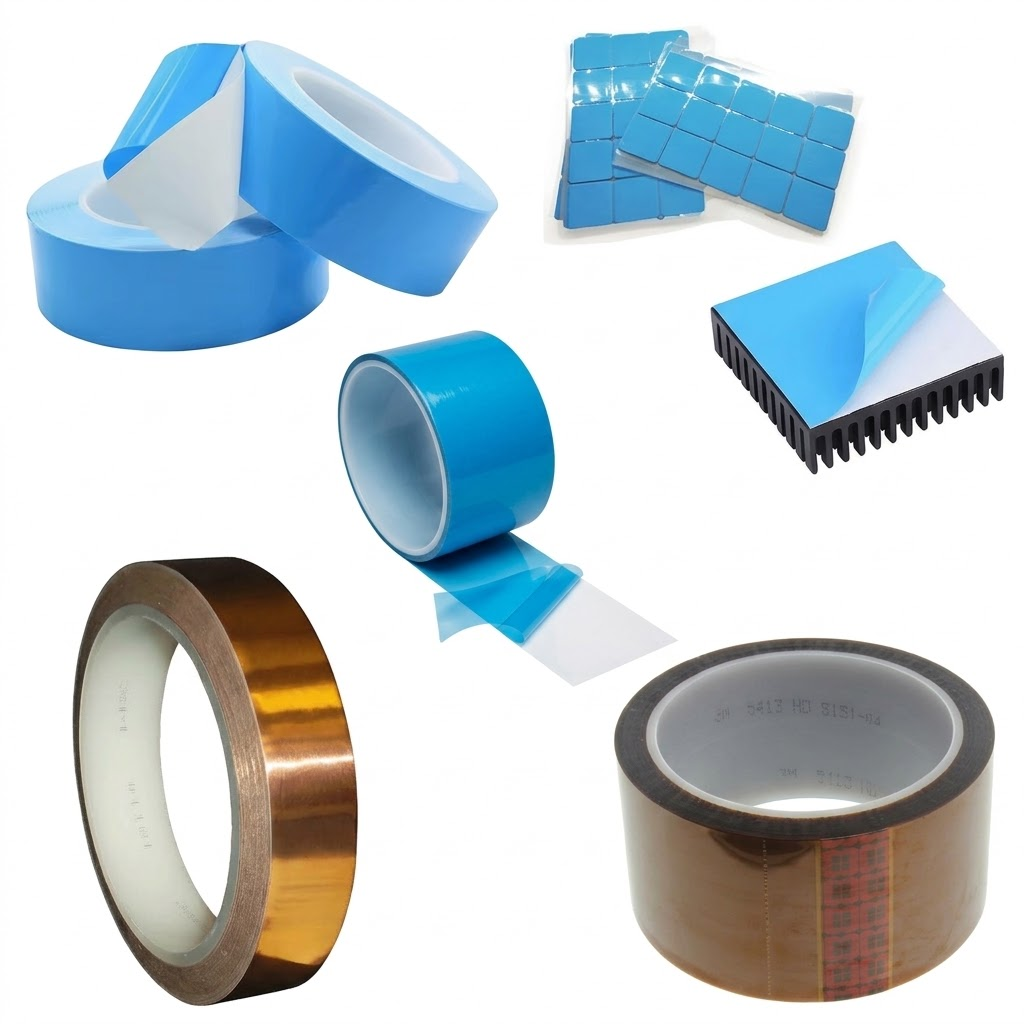

THERMAL & ELECTRICAL SHIELDING
3M™ Specialty & Conductive Tapes
Engineered functional solutions providing electrostatic discharge (ESD), EMI grounding shielding, wave solder thermal masking, and thermal conductivity.
- Grades: 5413 (Kapton/Polyimide), 1181 (Copper foil), 8810 (Thermal)
- Thermal Resistance: Resists continuous heat up to 260°C
- Focus: SMT PCB reflow masking, heat sink attachment, flex circuits
3. 3M™ Material Comparison & Quick Selection Guide
Review the key physical and environmental specifications across standard converted 3M™ grades.
| 3M Grade | Adhesive Family | Carrier / Substrate | Thickness | Max Temp | Recommended Usage |
|---|---|---|---|---|---|
| 3M™ 467MP | 200MP Acrylic | Unsupported (Transfer) | 0.05 mm (2.0 mil) | Up to 204°C | Ultra-thin bonding, smooth metals, membrane switches |
| 3M™ 468MP | 200MP Acrylic | Unsupported (Transfer) | 0.13 mm (5.0 mil) | Up to 204°C | Textured nameplates, slightly uneven metal surfaces |
| 3M™ 9495LE | 300LSE Acrylic | Clear PET Film | 0.17 mm (6.7 mil) | Up to 149°C | Low surface energy plastics (PP/PE), oily metal casings |
| 3M™ 9448A | Medium-Firm Acrylic | Tissue Carrier | 0.15 mm | Up to 120°C | Cost-effective foam lamination, general nameplates |
| 3M™ VHB™ 5952 | Modified Acrylic | Viscoelastic Acrylic Foam | 1.1 mm (45 mil) | Up to 121°C | Permanent structural joint bonding, powder-coated metals |
| 3M™ 5413 | Silicone Adhesive | DuPont™ Kapton® PI | 0.07 mm (2.7 mil) | Up to 260°C | Clean residue-free removal, PCB wave solder masking |
4. Assembly-Ready Enhancements
Extended Liners & Pull-Tabs
Custom non-adhesive finger tabs, butterfly cuts, and oversized backing liners engineered to shave seconds off manual peeling on your assembly line.
High-Tensile PET Liner Exchange
Replace fragile kraft paper liners with clear polyester (PET) release films to prevent web breakage during high-speed automated pick-and-place.
Clean Rotary Kiss-Cutting
Micron-level blade depth control cuts cleanly through aggressive 3M adhesive layers without scoring, weakening, or puncturing the carrier liner.
Frequently Asked Questions
Are all 3M™ materials genuine with traceability?
Yes. We source genuine raw rolls through authorized channels. Every converted shipment is supplied with lot-traceable Certificates of Conformance (CoC) and RoHS/REACH records.
Can you prototype with 3M™ tape without tooling fees?
Yes. For early engineering fit checks (1-50 pcs), our CNC digital knife table cuts directly from CAD files (.DXF/.DWG) with zero tooling investment and 24-48h dispatch.
What is the minimum slit width for narrow rolls?
Our dedicated precision slitters achieve narrow ribbon widths down to 2 mm with a ±0.1 mm width tolerance, wound tightly on 1-inch or 3-inch standard plastic/fiber cores.
What payment methods and currencies do you accept?
We support standard USD T/T (SWIFT wire transfers) for global accounts. In addition, to help international buyers minimize SWIFT intermediary bank charges and transfer delays, we provide local domestic bank collections across most European and North American regions (supporting local transfers in EUR via SEPA, GBP, USD, and other major European currencies).
Need a Specific 3M™ Grade or Precision Die-Cut Preform?
Send us your technical drawings (.DXF, .DWG, .PDF) or target bonding specs. Our converting team will provide material recommendations, DFM feedback, and formal quotes within 24 hours.
