ENGINEERED MATERIALS & CUSTOM DIE-CUT COMPONENTS
Product Portfolio & Converting Solutions
We transform genuine technical tapes, microcellular foams, high-dielectric films, and thermal management substrates into assembly-ready components. Available in precision slit coils, custom kiss-cut sheets, and feeder-ready continuous reels for electronics, automotive, and industrial OEMs.
-60°C to 300°C
Operating Thermal Range
IP65 – IP68
Gasket Sealing Ratings
UL94 V-0
Certified Flame Retardance
Custom PSA
3M & Crown Lamination
Explore Our Product Lines
STRUCTURAL & PRESSURE-SENSITIVE ADHESIVES

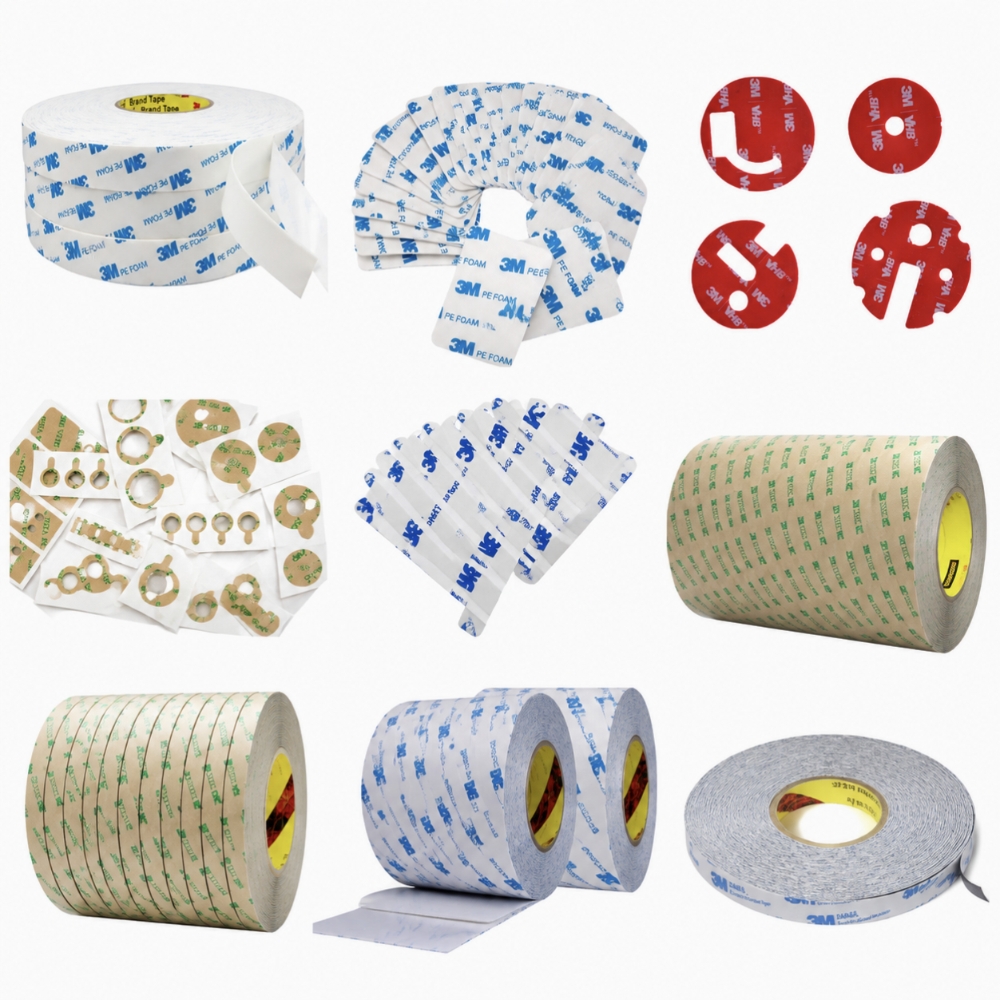

3M™ Adhesive Tapes
Converted genuine 3M™ solutions. We supply narrow-slit ribbon coils (down to 2 mm), standalone kiss-cut preforms with pull tabs, and pre-laminated adhesive backings on foams and substrates.
- Key Families: 3M™ VHB™ (5952, 4910), 200MP (467MP, 468MP), 300LSE (9495LE)
- Formats: Continuous rotary reels, sheeted preforms, precision slit coils
- Applications: Enclosure bonding, membrane switches, display bezels, nameplates
THERMAL MASKING & SMT PROTECTION

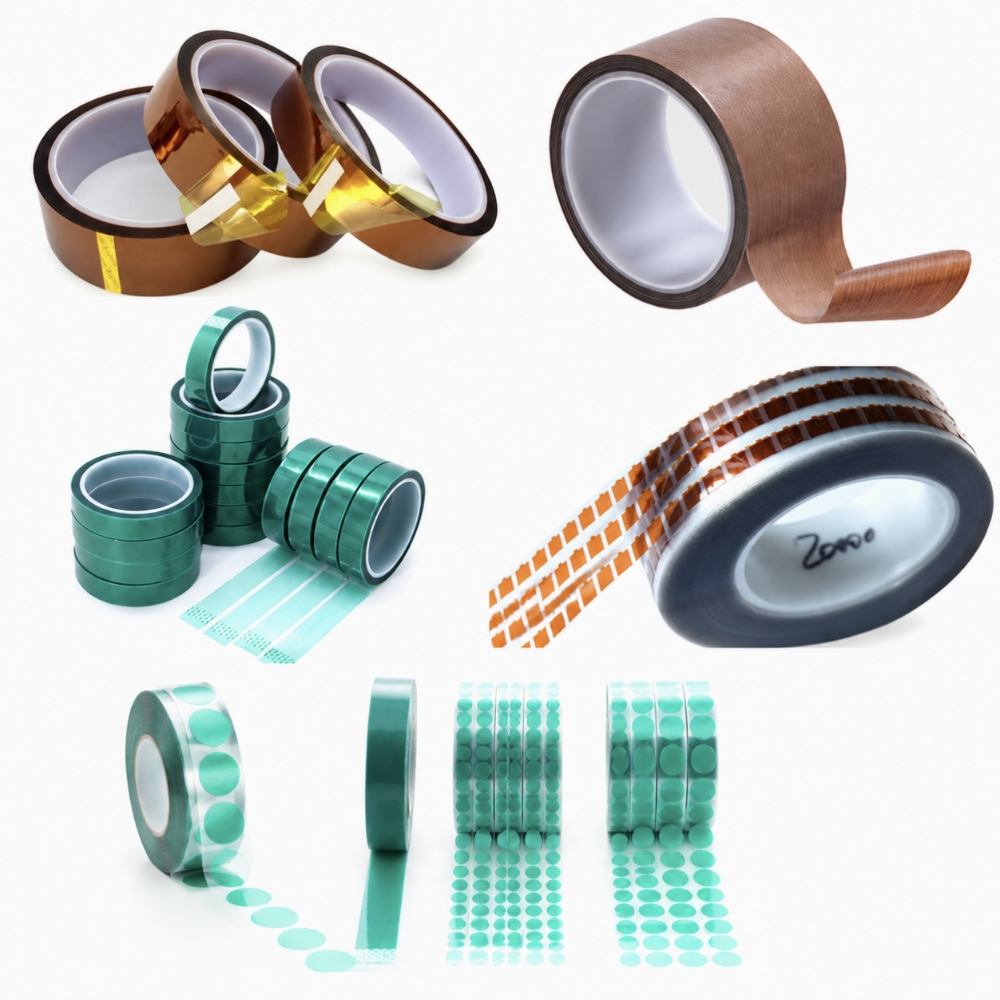

High-Temperature Tapes
Thermal shielding and masking films engineered for zero silicone adhesive ghosting or residue after high-bake cycles up to 260°C–300°C. Custom slitting and die-cut masking dots.
- Key Families: Polyimide (Kapton/PI/BGA), Green PET, Glass Cloth, PTFE, 3M 966
- Thicknesses: 0.05 mm (1 mil), 0.08 mm (2 mil) up to 0.18 mm heavy duty
- Applications: SMT gold finger masking, BGA rework, powder coating, e-coating
ENVIRONMENTAL SEALING & VIBRATION DAMPING

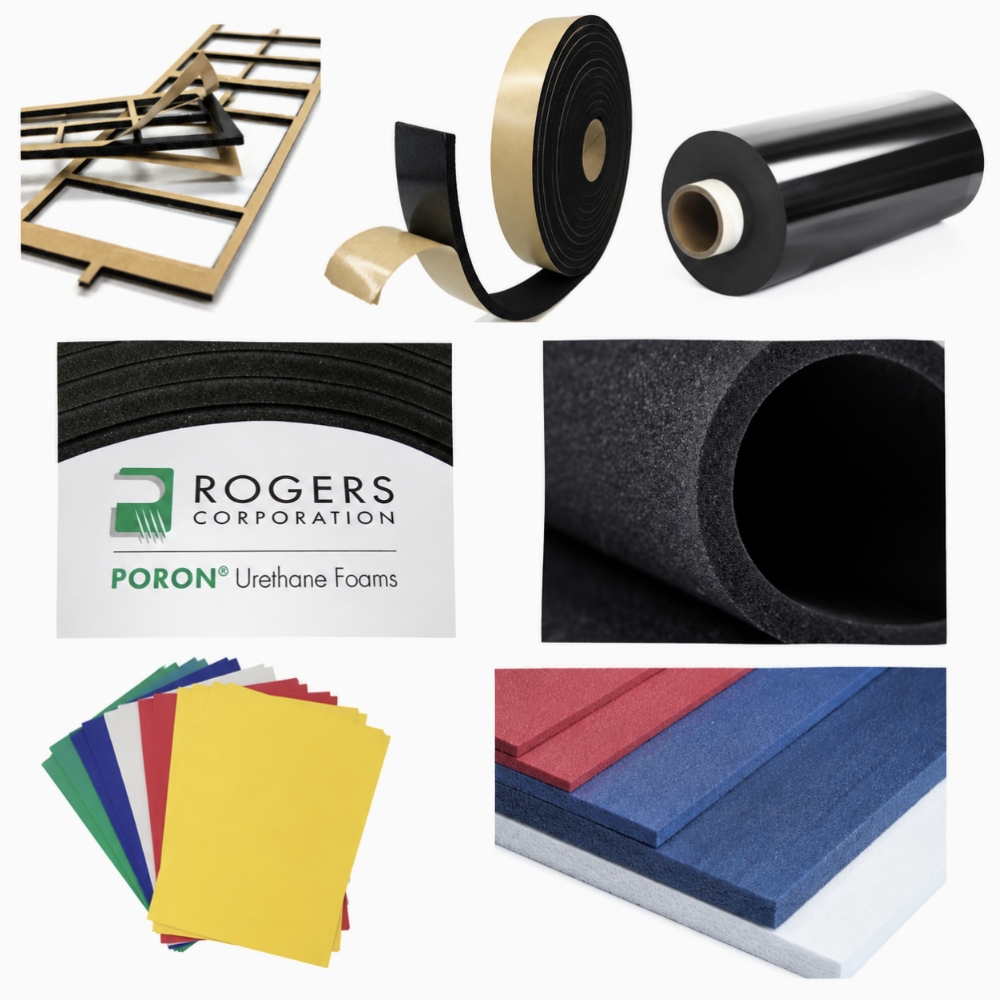

Foam Gaskets & Pads
High-recovery elastomeric foams converted into custom perimeter gaskets, sealing rings, and shock pads. Available raw or pre-laminated with 3M 9448A, Crown tissue, or transfer adhesives.
- Key Families: Rogers PORON®, Closed-cell EVA, PE (3M 1600T), Silicone sponge
- Thickness Range: 0.2 mm up to 15 mm
- Applications: IP67/IP68 enclosure water sealing, acoustic speaker damping, battery pack padding
SAFETY BARRIERS & THERMAL INTERFACE

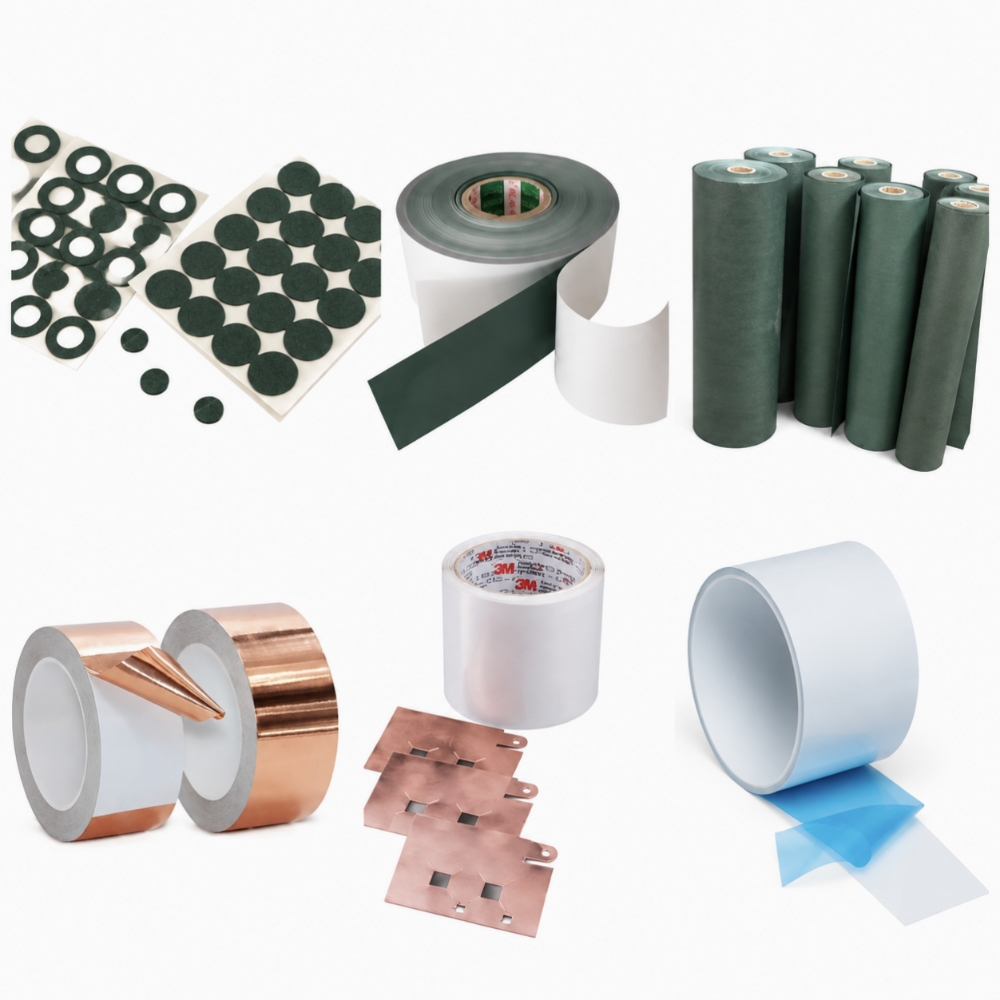

Insulation & EMI Shielding
Dielectric breakdown barriers, flame-retardant electrical shields, thermally conductive gap fillers, and copper foil spreaders engineered for strict compliance in high-power applications.
- Key Families: Fish Paper, Mylar®, Formex™ GK (UL94 V-0), 3M 8810, Copper foil
- Functions: Electrical short prevention, heat sink attachment, Z-axis grounding shielding
- Applications: EV battery cell top rings, server switch power supplies, transformer insulation
Comprehensive Material & Specification Matrix
Direct comparison across all converted material categories to assist engineers in selecting the proper substrate.
| Category | Standard Grades | Operating Temp | Key Functional Property | Converting Output |
|---|---|---|---|---|
| 3M™ Adhesives | VHB 5952, 467MP, 9495LE, 9448A | -40°C to 204°C | High shear, permanent structural bonding | Slit narrow coils, kiss-cut preforms with pull tabs |
| High-Temp Tapes | Kapton/PI, Green PET, Glass Cloth, PTFE | Up to 260°C–300°C | Residue-free clean removal after wave solder / bake | 2 mm slit rolls, masking dots, BGA window cutouts |
| Foam Gaskets | Rogers PORON®, EVA, PE, Silicone Sponge | -60°C to 200°C | < 2% compression set, IP67/IP68 moisture sealing | Kiss-cut rings, strips, custom PSA lamination |
| Electrical Barriers | Fish Paper, Mylar®, Formex™ GK | Up to 130°C | Up to 24 kV breakdown, UL94 V-0 flame rating | Scored-and-fold insulators, battery top washers |
| Thermal & Shielding | 3M 8810, Silicone Gap Pads, Copper Foil | -50°C to 200°C | 0.6 to 6.0 W/m-K, EMI suppression & grounding | Thermal preforms, conductive grounding pads |
Value-Added Production & Customization Formats
In-House Adhesive Lamination
Any non-adhesive substrate (Fish Paper, PORON, Mylar, copper foil) can be pre-laminated with 3M™ or Crown double-sided tapes before final die-cutting.

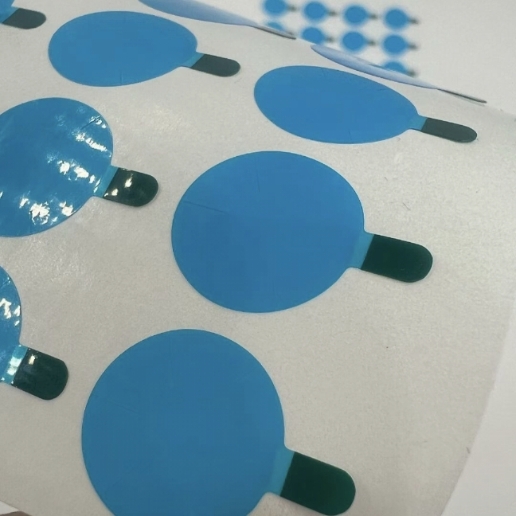

Assembly-Ready Extended Tabs
Equipped with easy-peel finger tabs, back-slit release paper, or transparent high-tensile PET carrier liners designed to reduce manual assembly cycle times.

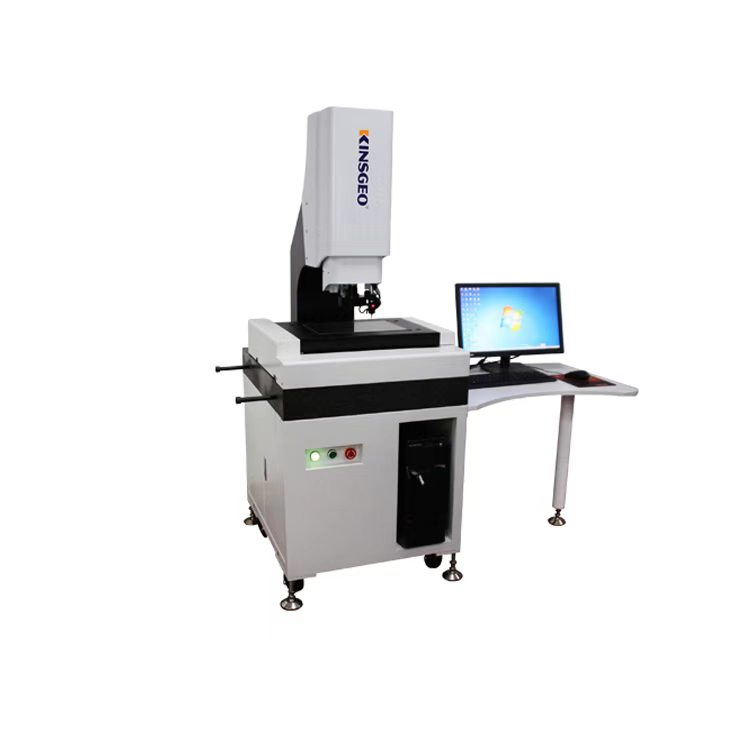

2D Metrology & FAI Reports
Non-destructive 2D optical video measurement (VMM) verifying critical inner holes, pitch concentricity, and ±0.05 mm contours with First Article Inspection records.
Frequently Asked Questions
Are all raw materials genuine with full lot certificates?
Yes. We source genuine branded substrates including 3M™, Rogers PORON®, DuPont™ Kapton®, and Formex™. Every delivery is traceable with Certificates of Conformance (CoC) and RoHS/REACH compliance data.
Can I test prototypes before committing to hard tooling?
Yes. Our CNC digital blade cutting systems produce fast prototype parts directly from your CAD vector files (.DXF/.DWG) within 24 to 48 hours without any upfront tooling investment.
What payment methods and currencies do you accept?
We support standard USD T/T (SWIFT wire transfers) for global accounts. In addition, to help international buyers minimize SWIFT intermediary bank charges and transfer delays, we provide local domestic bank collections across most European and North American regions (supporting local transfers in EUR via SEPA, GBP, USD, and other major European currencies).
What drawing formats are accepted for quotes?
We accept .DXF, .DWG, and dimensioned .PDF engineering drawings. Please specify material grade, thickness, critical dimensional tolerances, and preferred supply formats (reels or sheets).
Need Material Samples or a Production Quotation?
Send us your technical drawings or target performance requirements. Our converting engineering team will deliver comprehensive DFM feedback, material sample recommendations, and formal quotes within 24 hours.
