Precision Slitting & Rewinding Services

Rewinding & Slitting

Precision slitting and tension-controlled rewinding engineered for high-performance adhesive tapes, foams, and specialty films. Converting jumbo logs into micron-accurate narrow rolls down to 2 mm for automated die-cut feeding or custom tape applications.

1. Fleet Capabilities: Specialized Slitting & Converting Machinery

Shear Slitter Line #1

Dual-driven circular male and female rotary knives providing clean, compression-free scissor cutting for heavy double-coated tapes, copper/aluminum foils, and abrasive composites.

Width range:
6 mm to 1300 mm

Heavy-duty rotary shear slitting machine cleanly converting thick foam tapes, copper foils, and structural adhesive laminates with burr-free edges

Clean, burr-free perimeter cuts
Up to 2.5 mm material thickness

Razor Slitter Line #2

Razor-in-groove and razor-in-air tooling with tungsten carbide and ceramic blades engineered for ultra-thin PET, Kapton, release liners, and transfer films without edge ooze.

Ultra-narrow
slitting down to 2 mm

High-precision razor slitting press converting ultra-thin Kapton, PET dielectric films, and transfer adhesives down to 2 mm narrow widths

Zero drag, zero fiber shedding
±0.1 mm dimensional tolerance

Lathe Slitter Line #3

Automated single-knife log cutter slicing directly through prewound master logs without unrolling. Rapid-turnaround production on standard foam and industrial single/double-sided rolls.

Fast setup with zero unwinding stress

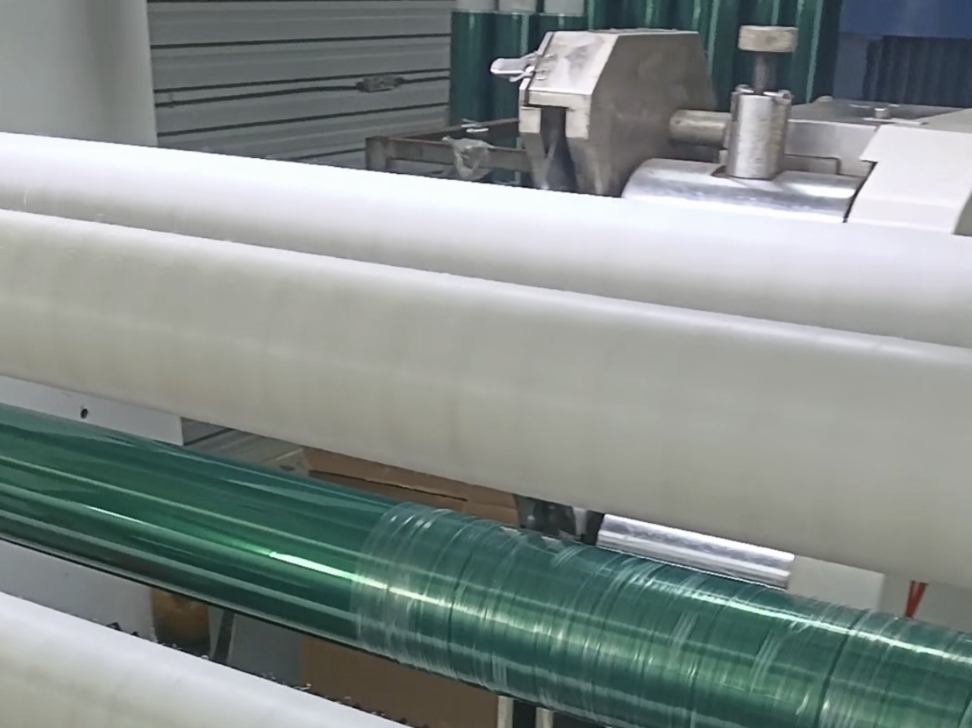

Automated circular lathe log slitter cutting directly through pre-wound master adhesive tape rolls for rapid turnaround

Lubricated blade cycle prevents tacking
Immediate dispatch on standard logs

Tension Rewinder Unit

Dedicated dynamic rewinding station designed to adjust roll lengths, exchange release liners, switch core sizes, and inspect edge tension curves under controlled conditions.

Custom continuous rewind lengths

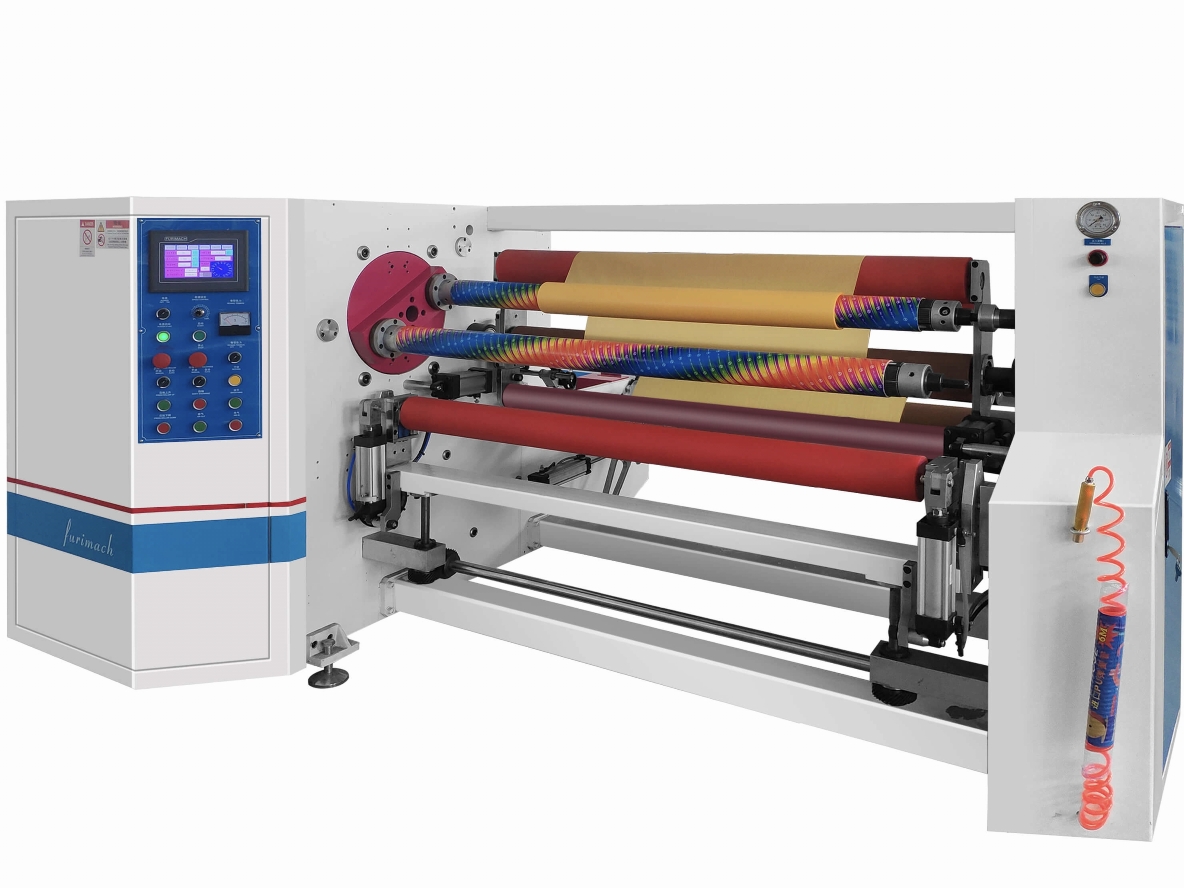

High-speed dynamic tension-controlled rewinding machine for custom roll length converting, liner exchange, and core size switching

1″ and 3″ precision core conversions
Prevents telescoping & web curl

2. Dual Application Modes: Upstream Feed & Finished Tape Supply

A. Upstream Backbone for Precision Die-Cutting

Eliminates supply-chain delays with continuous in-house log breakdown.

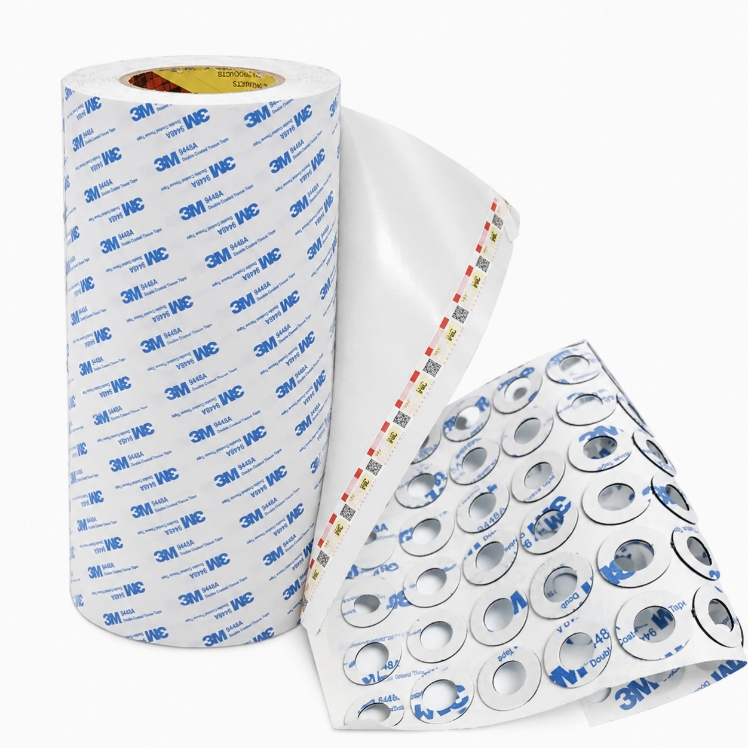

Precision-slit adhesive rolls prepared as upstream raw feed stock for rotary and flatbed die-cutting presses

Customized roll widths match tooling nest layouts to minimize edge scrap.
Protects liner backing integrity without micro-fracturing or edge nicking.

B. Custom-Dimension Roll Supply (Finished Tape Rolls)

Micro-slit narrow tapes down to 2 mm for electronics, EV batteries, and flex PCB stiffening.

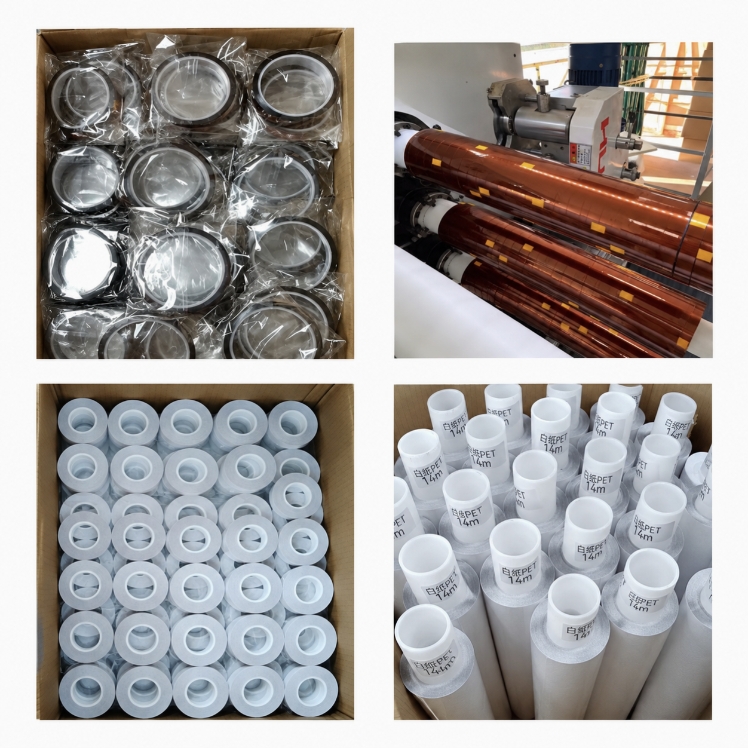

Finished adhesive tape rolls slit to custom widths down to 2mm and specified lengths on 1-inch and 3-inch cores

Custom linear roll lengths engineered for automatic tape dispensers or manual assembly stations.
1″ (25.4 mm) and 3″ (76.2 mm) precision core options in plastic or reinforced fiber.

3. Converted Substrates & Adhesive Systems

Pressure-Sensitive Tapes

Genuine 3M, Nitto, and Tesa jumbo logs converted into custom rolls: acrylic foam (VHB), double-sided PET/tissue, and unsupported transfer adhesives.

Engineered Foams

Micro-cellular urethane (Rogers PORON), silicone foam, cross-linked PE, and EVA logs precision slit for weatherproofing gaskets and battery cell cushions.

High-Temp & Dielectric

Polyimide (Kapton), Mylar (PET), release liners, and high-temp masking tapes converted for wave soldering, SMT reflow, and electrical insulation.

Shielding Foils

Rolled annealed copper foils, aluminum shielding tapes, and conductive fabric rolls converted for grounding, EMI attenuation, and wire wrap.

4. Working With Us: Seamless 5-Step Process

Spec Review

Evaluate master log specs, target slit widths down to 2 mm, roll lengths, and core tolerances.

Blade Setup

Configure precision shear knives, razor assemblies, or lathe cutters with calibrated precision spacers.

Pilot Slit & FAI

Run trial slitting, verify edge cleanliness under 2D optical measuring, and approve width stability.

Precision Rewind

Continuous tension-controlled slitting and rewinding onto 1″ or 3″ standard cores with automated web guidance.

Protective Pack

Dust-free shrink packing, suspended core pallet placement, and lot traceability labeling for export.
