Engineering & Manufacturing Highlights
Value-added engineering built for international OEM/ODM assembly lines.
Delivery Formats
Custom-packaged in rotary continuous rolls for automated pick-and-place feeders, or precision sheets with extended pull-tabs for zero-effort manual peeling.
DFM & Nesting
Complimentary engineering drawing review (DFM) with smart CAD nesting layouts to maximize raw material yield and eliminate adhesive squeeze-out.
Dust-Controlled Converting
Strictly controlled cleanroom processing lines for optical adhesives, electronics insulation films, and sensitive gasket products, preventing airborne particulate defects.
FAI & Full Documentation
100% RoHS and REACH compliant raw materials. Every production batch includes First Article Inspection (FAI) dimensional data and Certificate of Conformance (CoC).
Precision Die-Cutting Services
1. Fleet Capabilities: Continuous Rotary & Precision Flatbed

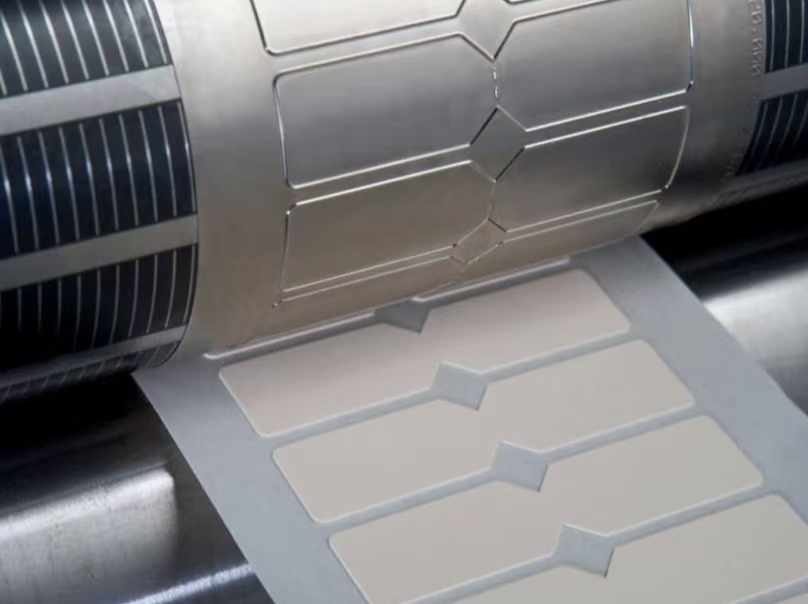

High-Speed Rotary Die-Cutting
Multi-station cylindrical tooling engineered for large-volume roll-to-roll production. Maximum throughput, tight web registration, and simultaneous inline laminating.
- Best For: High-volume serial runs (100k – millions pcs)
- Output Format: Continuous reels for auto-pick & place
- Tolerance: Standard ±0.05 mm

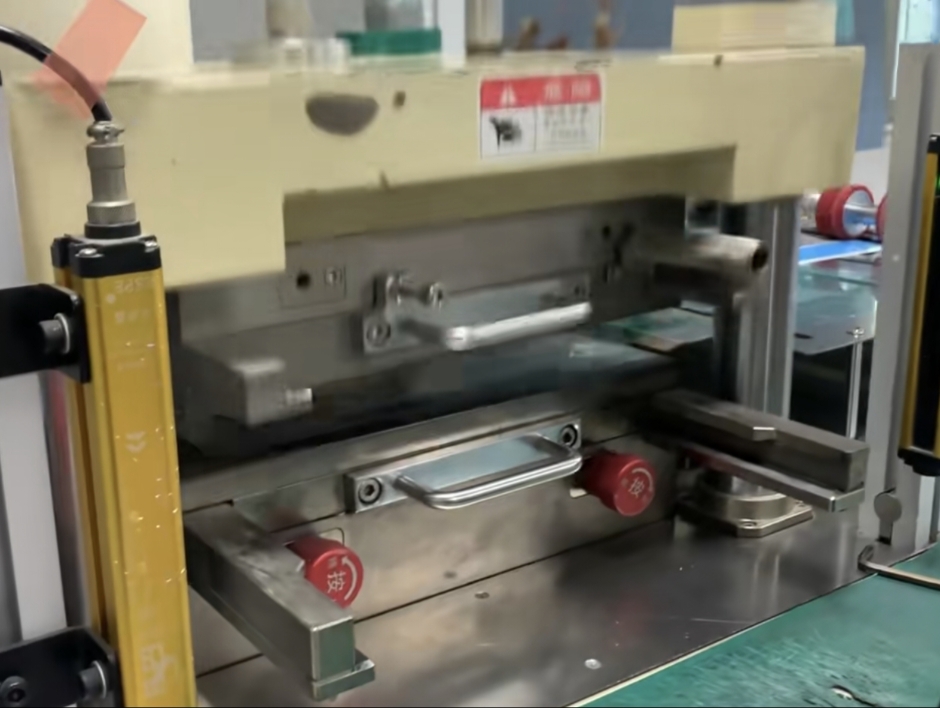

Precision Flatbed Die-Cutting
Heavy tonnage platen cutting suited for thick foam gaskets, dense thermal gap pads, and rigid insulations with low upfront tooling setup costs.
- Best For: PORON foams, EVA gaskets, mid-scale batches
- Output Format: Sheeted parts or individually cut gaskets
- Tooling Setup: Rapid 12-hour turnaround steel rule dies
2. Advanced Tooling & Converting Processes
Controlled Kiss-Cutting
Micron-level depth tuning by 10+ year master toolmakers. Cleanly cuts through adhesives and substrates while leaving the siliconized carrier liner completely uncut.
Pull Tabs & Extended Liners
Custom-engineered easy-peel pull tabs, butterfly cuts, and extended border liners designed to speed up manual operator placement by up to 35%.
Multi-Layer Lamination
Continuous multi-station lamination combining transfer tapes, porous foams, mesh filters, and metallic shields prior to final single-pass profile die cutting.
Automated Matrix Stripping
High-speed slug removal and web matrix waste evacuation ensuring zero adhesive edge bleeding and completely clean component perimeters.
3. Quality Verification & Controlled Manufacturing
In-House 2D Optical Inspection (VMM)
Every production batch undergoes non-contact optical coordinate measuring. We measure critical inner diameters, hole concentricity, pitch spacing, and outer edge profiles with micron precision.
- First Article Inspection (FAI) dimensional reports provided.
- Statistical Process Control (SPC) maintaining tight CPK values.
Dust-Controlled & Certified Output
Converting lines operate under controlled dust-minimized environments to safeguard optical adhesives, electronics gaskets, and dielectric barriers from airborne contamination.
- 100% RoHS & REACH compliant raw materials with SGS records.
- Certificate of Conformance (CoC) and lot traceability with every shipment.
4. Supported Materials Portfolio
Pressure-Sensitive Tapes
3M VHB, 467MP, 468MP, 9448A; Nitto 500/5000NS; Tesa 4965; Avery Dennison transfer adhesives.
Foams & Cushioning
Rogers PORON urethane, microcellular silicone foam, closed-cell EVA, EPDM, CR sponge gaskets.
Insulation & Films
Polyimide (Kapton), PET Mylar, Nomex aramid paper, Formex electrical barrier, optical grade PET.
Thermal & EMI Shielding
Silicone thermal pads, synthetic graphite sheets, copper/aluminum foils, conductive fabric tapes.
5. Working With Us: Seamless 5-Step Process
STEP 01
DFM Review
CAD analysis & nesting optimization within 24h.
STEP 02
Rapid Samples
Zero-tooling knife cuts or 12h rapid steel dies.
STEP 03
Pilot & FAI
Full 2D optical dimension data sign-off.
STEP 04
Serial Die-Cut
High-speed rotary or multi-cavity production.
STEP 05
Packaging & CoC
Reels/sheets shipped with inspection certificates.
Ready to Scale Your Production?
Send us your technical drawings (.DXF, .DWG, or .PDF). Our engineering team will deliver a comprehensive DFM tooling review and volume quote within 24 hours.
